EDP

for low to medium vacuum and pressure cycling.

REMBE® EDP
Made in Germany

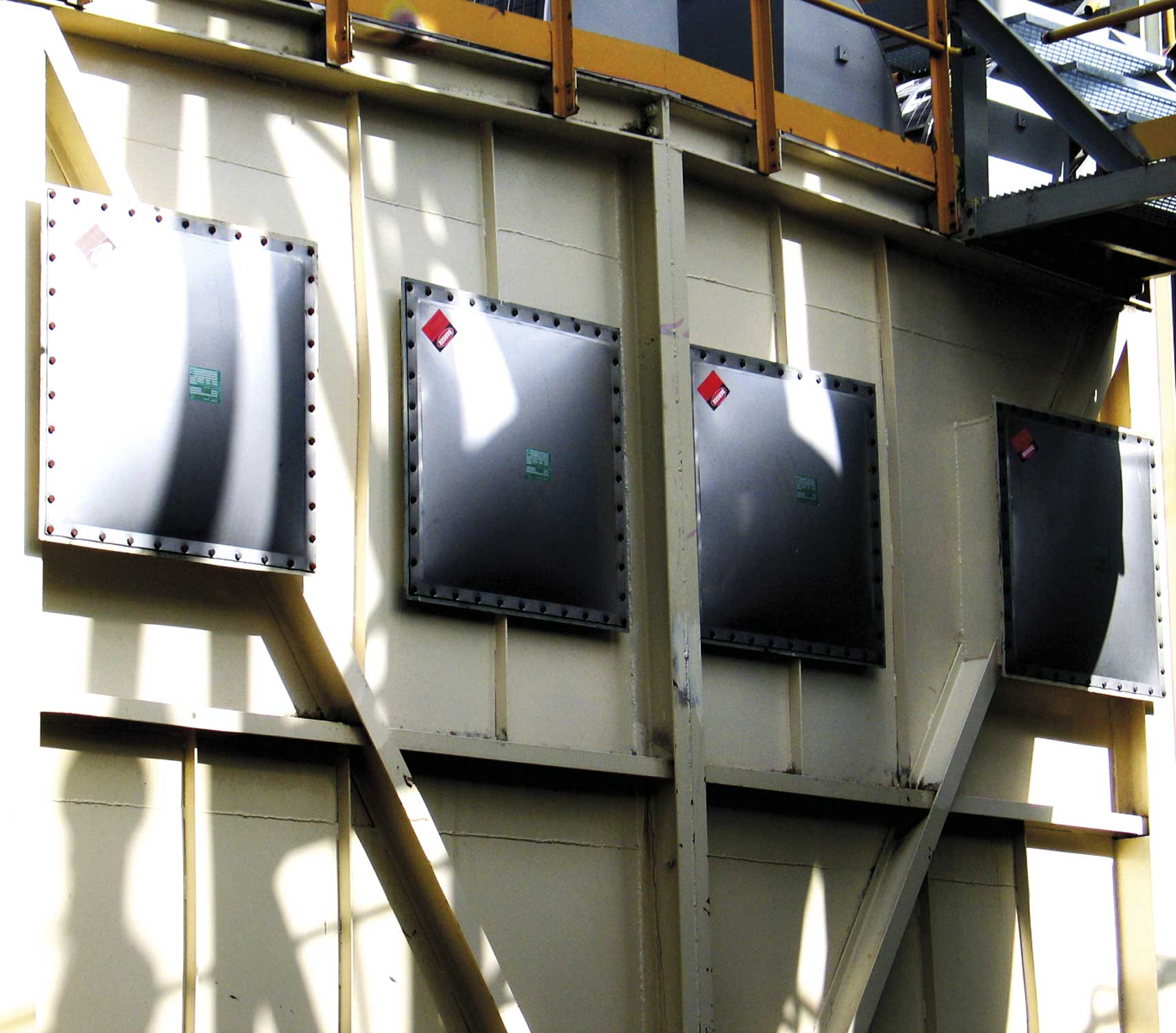

Application
The domed, single layer explosion vent is suitable for use in processes with medium vacuum or overpressure (up to 70 % of min. response pressure (pstat)) and slight pressure cycling. It is particularly suitable for vessels with pneumatic filling equipment and for filters and sieves with strong vibration. The standard bursting pressure is 0.1 bar at 22 °C (71.6 °F).
REMBE EDP with Accessoires

RSK signalling unit

The retrofit signaling unit with tear wire.

BIRD signalling unit

Contains a ceramic bar with integrated electrical conductors, also for high temperatures.
Advantages
  • The domed construction provides high stability and pressure cycling resistance.
  • Quick and easy installation as EDP is torque independent. No additional counter frame required.
  • Significant space savings due to the integrated gasket and tensioning frame in the REMBE® explosion vent.
Mechanism
When pressure rises, the EDP explosion vent opens and releases pressure out of the vessel into the surrounding area.
Technical data
Product parameters
Standard burst pressure Pstat
0.1 bar at 22 °C (71.6 °F)
Max. permitted operating pressure
Up to 70 % of Pstat
Temperature
− 40 to + 180 °C (− 40 to + 356 °F)
Material
Stainless steel
Gasket material
EPDM, silicon, foam rubber
Tolerance
± 20 % at standard burst pressure
Standard vacuum resistance
Up to 500 mm HO (WC) to 0.64 m², up to 300 mm HO (WC) from 0.65 m²
Recommended tightening torque for M10 bolt
15 – 20 Nm
Our specialists will be pleased to assist you in fi nding a solution that matches your specific operating conditions.
Applications + Industries
  • animal feed productions
  • aspiration plants
  • brewery
  • destoners
  • filters
  • food
  • food production
  • hydrogen
  • mills and grinding plants
  • mixers
  • recycling
  • screens
  • silo
  • spray dryers
  • wood processing

Certifications

SIL-Equivalent

SIL 4
ATEX EC type examination certificate no. FSA 04 ATEX 1538 X

ATEXEC type
examination certificate no. FSA 04 ATEX 1538 X
